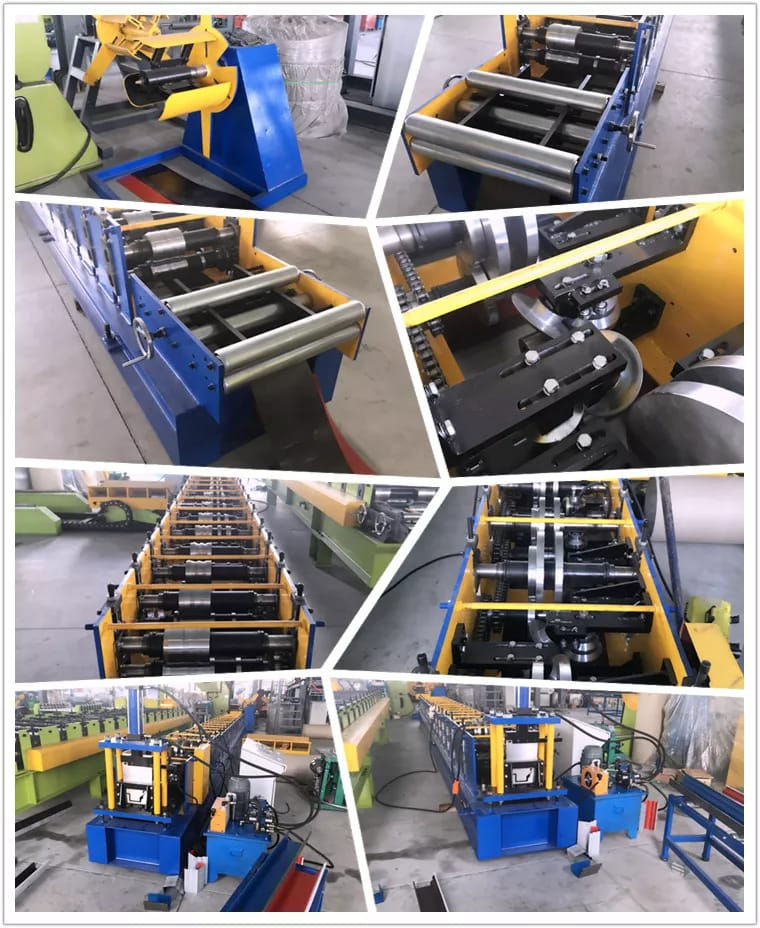

Here are the specifications for an Automatic Metal Water Gutter Roll Forming Machine:
# General Specifications
1. Machine Type: Automatic Metal Water Gutter Roll Forming Machine
2. Application: Forming metal water gutters for building construction
3. Material: Galvanized steel, aluminum, or stainless steel
4. Thickness: 0.4-1.5 mm (adjustable)

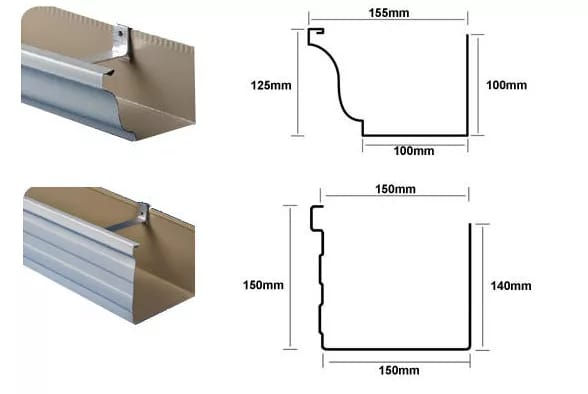

5. Width: 100-300 mm (adjustable)
# Main Components
1. Decoiler: Hydraulic decoiler with capacity of 5 tons
2. Leveling System: 5-roller leveling system for flatness correction
3. Roll Forming System: 10-14 stations roll forming system with quick changeover design
4. Cutting System: Hydraulic cutting system with cutting die
5. Control System: PLC control system with touch screen HMI
# Technical Parameters
1. Forming Speed: 20-40 m/min (adjustable)
2. Cutting Speed: 10-20 times/min (adjustable)
3. Roller Material: Cr12Mov alloy steel
4. Shaft Material: 45# steel
5. Motor Power: 11-15 kW
# Safety Features
1. Safety Guard: Safety guard for operator protection
2. Emergency Stop: Emergency stop button
3. Alarm System: Alarm system for abnormal operation
# Dimensions and Weight
1. Machine Length: 10-12 meters
2. Machine Width: 2-3 meters
3. Machine Height: 2-3 meters
4. Machine Weight: 6-8 tons
# Optional Features
1. Auto Loading System: Auto loading system for metal coils
2. Auto Unloading System: Auto unloading system for finished gutters
3. Gutter Bracket Forming System: System for forming gutter brackets
# Additional Information
1. Warranty: 1 year warranty for the machine
2. Training: Operator training provided
3. Installation: Installation and commissioning support provided
