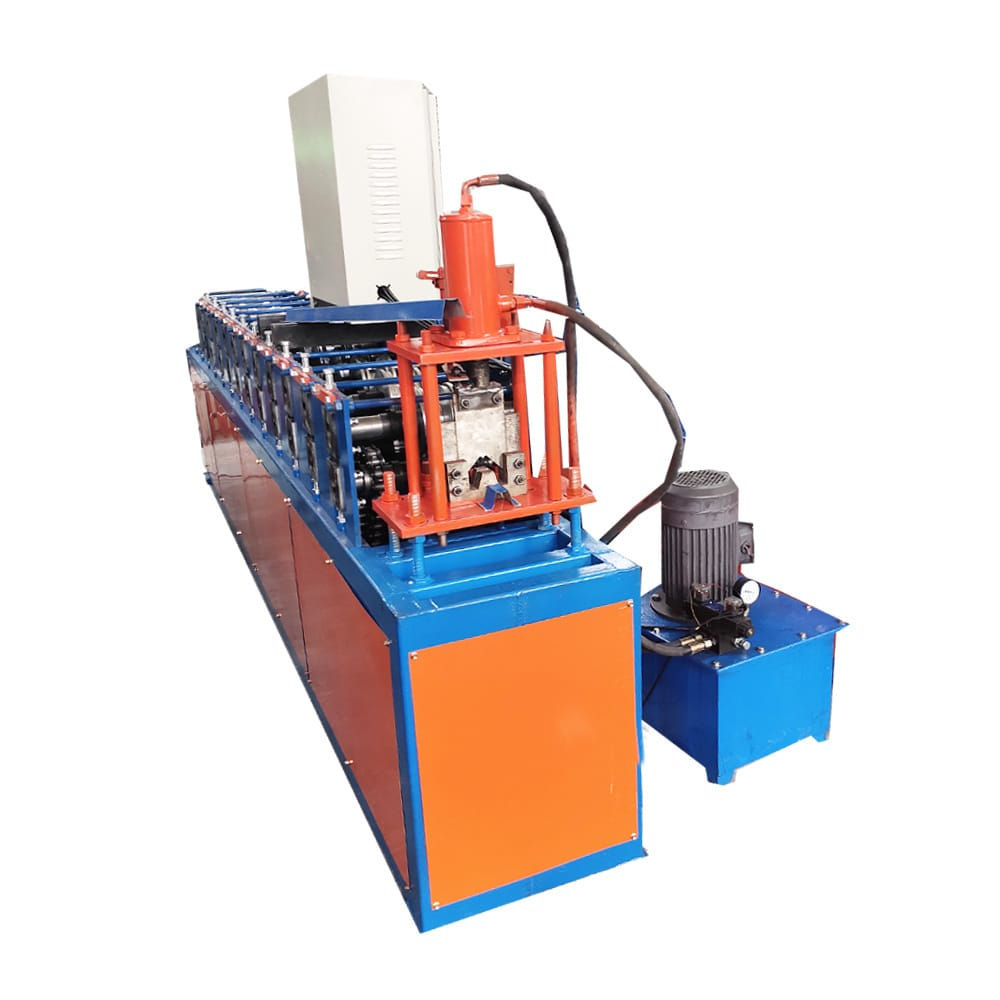

Here are the specifications for an Automatic PPGI GI PPGL GL Omega Stud Shaped Hat Metal Furring Channel Roll Forming Machine:
# General Specifications
1. Machine Type: Automatic PPGI GI PPGL GL Omega Stud Shaped Hat Metal Furring Channel Roll Forming Machine
2. Application: Forming omega studs, hat channels, and furring channels for construction and building industries
3. Material: PPGI (Pre-painted Galvanized Iron), GI (Galvanized Iron), PPGL (Pre-painted Galvalume), GL (Galvalume)
4. Thickness: 0.4-1.5 mm (adjustable)
5. Width: 50-300 mm (adjustable)
# Main Components
1. Decoiler: Hydraulic decoiler with capacity of 5 tons
2. Leveling System: 5-roller leveling system for flatness correction
3. Roll Forming System: 14-20 stations roll forming system with quick changeover design
4. Cutting System: Hydraulic cutting system with cutting die
5. Control System: PLC control system with touch screen HMI
# Technical Parameters
1. Forming Speed: 20-40 m/min (adjustable)
2. Cutting Speed: 10-20 times/min (adjustable)
3. Roller Material: Cr12Mov alloy steel
4. Shaft Material: 45# steel
5. Motor Power: 15-22 kW
# Safety Features
1. Safety Guard: Safety guard for operator protection
2. Emergency Stop: Emergency stop button
3. Alarm System: Alarm system for abnormal operation
# Dimensions and Weight
1. Machine Length: 12-15 meters
2. Machine Width: 2-3 meters
3. Machine Height: 2-3 meters
4. Machine Weight: 8-12 tons
# Optional Features
1. Auto Loading System: Auto loading system for metal coils
2. Auto Unloading System: Auto unloading system for finished profiles
3. Profile Straightening System: Profile straightening system for straightening finished profiles
# Additional Information
1. Warranty: 1 year warranty for the machine
2. Training: Operator training provided
3. Installation: Installation and commissioning support provided
