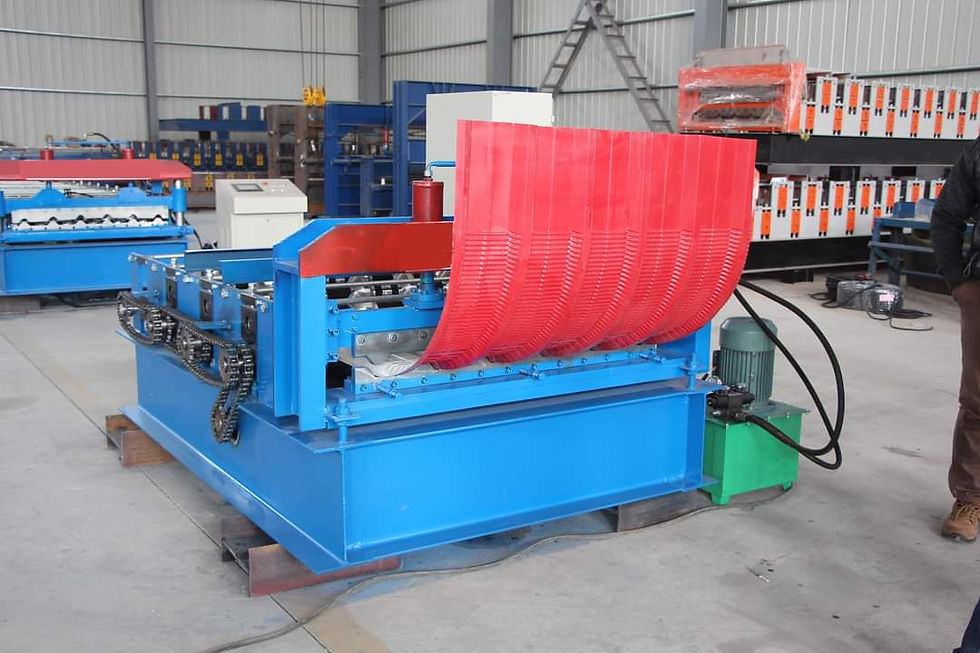

Our Crimping roll forming machines are specialized equipment used to shape metal sheets into desired profiles.

specifications for crimping roll forming machines:
# General Specifications
- Material Type: Colour coated, BGL, painted steel, painted aluminum, copper
- Thickness: 0.35 mm to 0.60 mm for BMT, 0.3 mm to 0.6 mm for painted steel, 0.027" to 0.040" for painted aluminum
- Yield Strength: 300 Mpa to 550 Mpa
- Profile: Customizable as per customer requirement
- Capacity: Depends on labor skill level
- Minimum Radius: 200 mm
- Length: 300 mm to 6000 mm
# Machine Specifications
- Electricity Required: 415 Volt, 3Phase, 50 Cycle
- Machine Weight: Approximately 2 MT
- Dimension: 5' x 4' x 3'
- Rolls Material: EN-31 (Chrome Plated)
- Minimum Stroke Size: 25 mm
- Degree Bend Per Stroke: 7 degrees
- Guide Roller Station: 2 stations
- Transmission System: Gear motor with gearbox
- Pressing System: Hydraulic
- Electrical Panel: PLC-based
# Additional Features
- Power Consumption: 5.5 Hp
- Power Supply Required: 415 Volt, 3Phase, 50 Cycle
- Speed: Up to 60 ft/min (18m/min)
- Cutting: Hydraulically powered, hardened tool steel blades and shear dies
