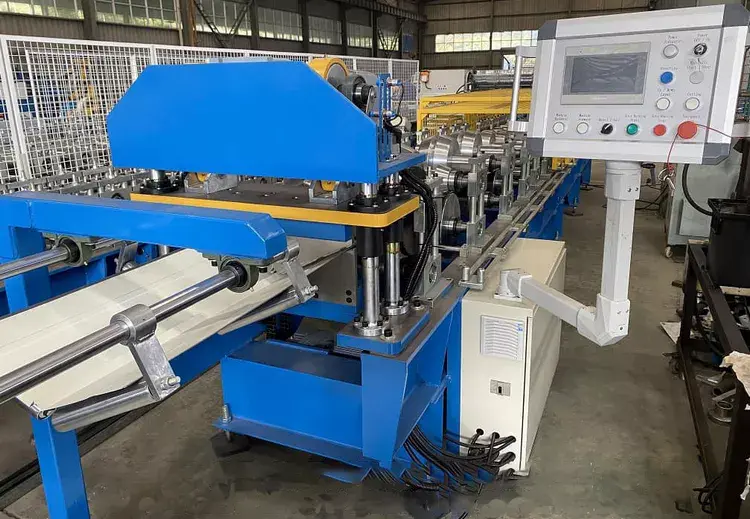

Ridge Cap Roll Forming Machines are specialized equipment used to produce ridge capping for roofing applications. Here are some key specifications for these machines:
# General Specifications
- Panel Shape: Can be customized according to profile drawings and customer requirements
- Operator Needed: 1 person
- Power Supply: 220V/380V/415V/460V, 50/60Hz, 3P (can be customized)
- Equipment Weight: Approximately 8 tons
- Dimension: Approximately 20_2.5_2m (L_W_H)
# Technical Specifications
- Raw Material: Color coated steel, aluminum sheet
- Thickness Range: 0.3-0.6mm (can be customized)
- Yield Strength: 230-300/350 MPa (optional)
- Width: 385mm (as per profile requests)
- Working Speed: 15-30m/min (can be customized)

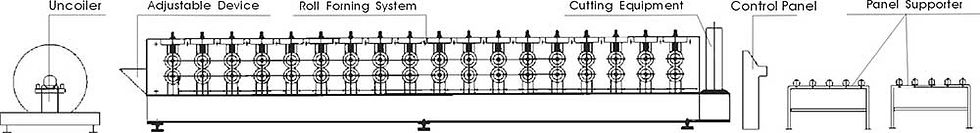

# Additional Features
- Decoiler: 2t/3t/5t motor/hydraulic motor/passive (optional)
- Roll Forming System: 15/20/30 m/min
- Post-Cutting: Motor/hydraulic (optional)
- Output System: Manual supporter/ Automatic Stacker (optional)
# Variations
There are different models of Ridge Cap Roll Forming Machines available, such as the Metal Ribbed Ridge Cap Roll Forming Machine, which has its own set of specifications
